C-100

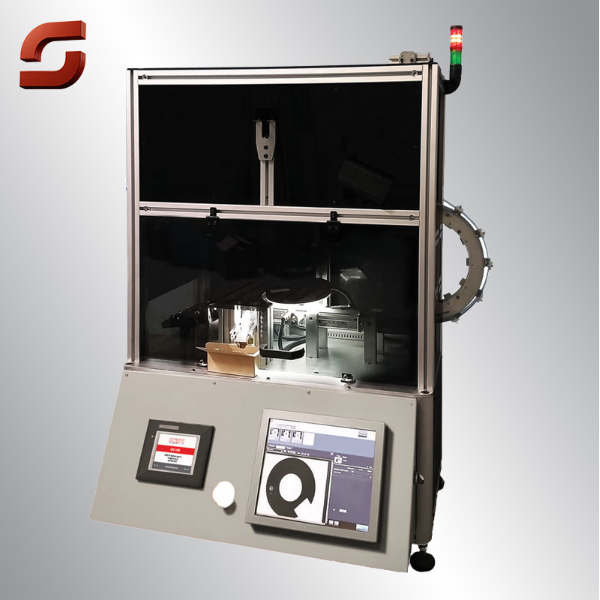

C-100 Custom Inspection Machine: Revolutionizing Complex Part Inspection

Introducing the C-100 Custom Inspection Machine from SORSYS, a cutting-edge solution engineered specifically for the inspection of complex machining parts. This machine is designed to meet the challenge of inspecting intricate features that traditional imaging techniques can't handle. With the incorporation of a pericentric lens and advanced Lumitrax lighting technology, the C-100 sets new standards in precision inspection, ensuring that every part meets your exacting quality criteria.

Key Features:

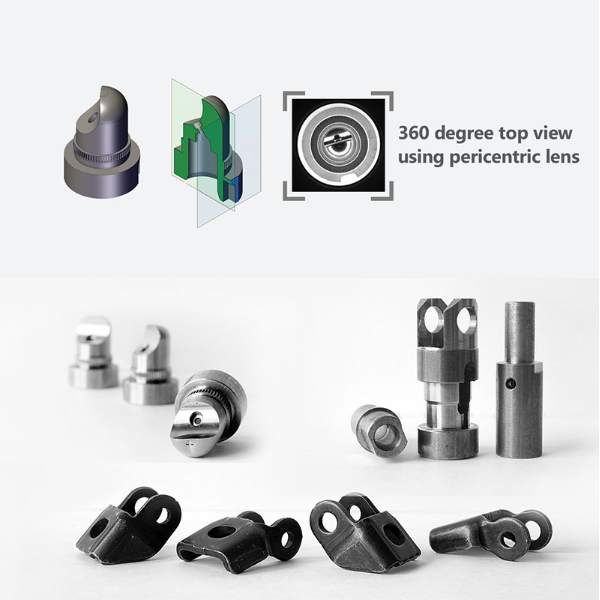

·      360-Degree Inspection: Utilizes a pericentric lens, allowing the camera to capture a complete 360-degree view of the part, making it perfect for measuring angles between features that are otherwise difficult to assess.

·      Advanced Lumitrax Lighting: Equipped with Lumitrax lighting technology, the C-100 excels in highlighting the smallest imperfections, including hit marks, scratches, and surface irregularities, ensuring no defect goes unnoticed.

·      Manual Loading System: Designed for manual loading, the C-100 allows for careful placement of parts, ensuring each piece is positioned correctly for comprehensive inspection.

·      Dual-Sided Imaging Capability: After the initial inspection, parts are released and manually turned 180 degrees for a second set of images, guaranteeing full coverage and analysis.

·      Versatile Inspection Criteria: Capable of accurately assessing a variety of defects such as angle discrepancies, hit marks, burrs, damaged features, scratches, and dents, offering comprehensive quality control.

Benefits:

The C-100 Custom Inspection Machine is not merely an equipment; it's a transformative tool for industries that require meticulous inspection of complex parts. By integrating the C-100 into your quality control process, you can expect:



Unmatched Precision: Through its innovative imaging technologies, the C-100 delivers unparalleled accuracy in detecting even the most minor flaws.

Comprehensive Coverage: Its ability to inspect every angle ensures that no part of the component goes unchecked, raising the standard of quality assurance.

Enhanced Quality Control: With detailed inspection capabilities, the C-100 significantly reduces the risk of defective parts progressing through your production line, safeguarding your brand's reputation.

Adaptability to Complex Parts: Designed specifically for complex machining parts, the C-100 offers a specialized solution where traditional inspection machines fall short.

C-100
C-100
The C-100 Custom Inspection Machine by SORSYS is the ultimate solution for manufacturers looking to elevate their inspection processes for complex parts. With its advanced technologies and detailed analysis capabilities, the C-100 ensures that every component meets the highest standards of quality, reflecting your commitment to excellence in manufacturing.

Request Quote

C-300

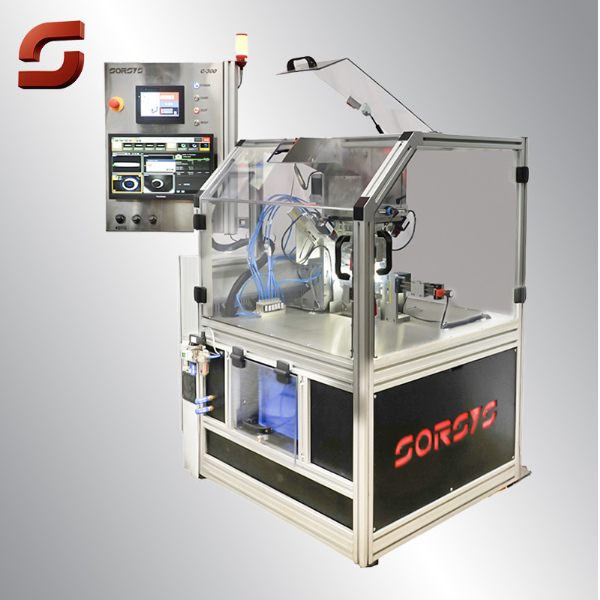

Introducing the C-300: Precision Inspection for Compressive Springs


Key Features:



·      Accurate Length Measurement: The C-300 ensures that each spring is within a stringent tolerance of +/- 100 microns in overall length, guaranteeing uniformity and consistent performance.

·      Grinding Orientation Analysis: By meticulously evaluating the start angle and depth of cap grinding, the machine confirms that each spring meets exact specifications for optimal functionality.

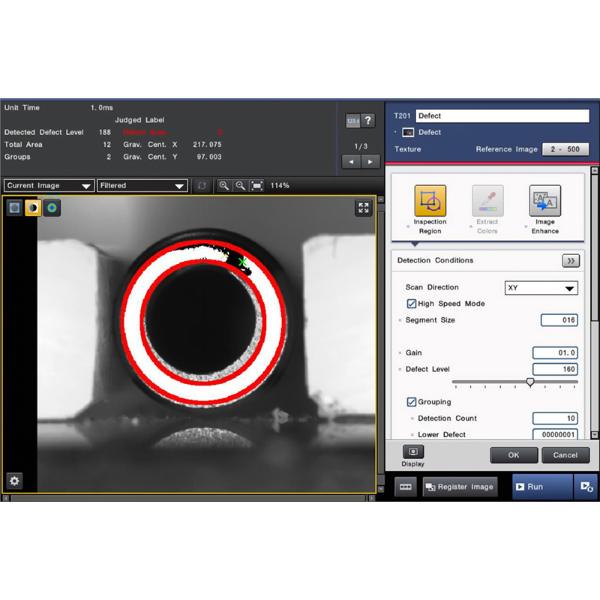

·      Burr Detection: Advanced imaging technology detects even the slightest burrs on cap edges, preventing potential component failure or assembly issues.

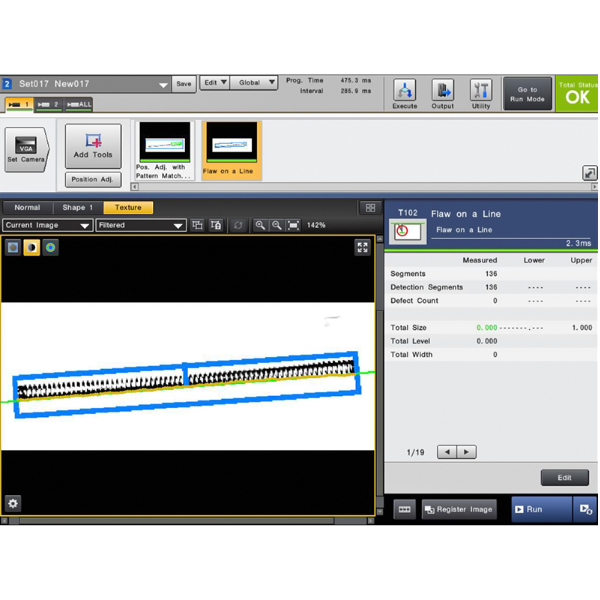

·      Bent Spring Identification: The C-300 quickly identifies and removes any bent springs, maintaining the integrity of your product line.

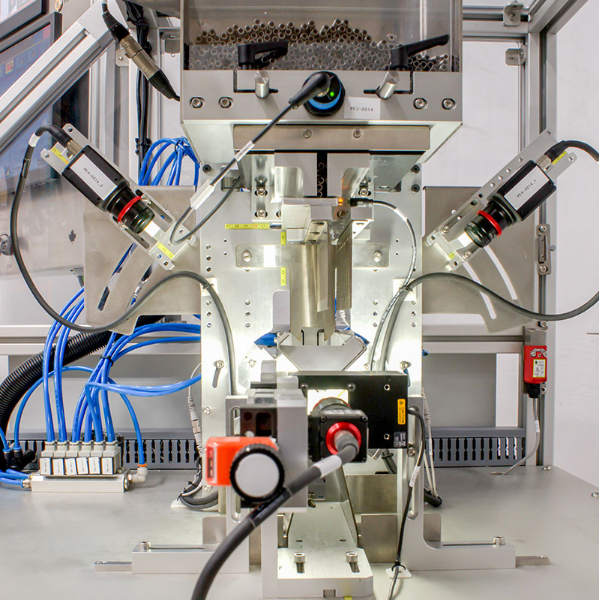

·      High-Resolution Imaging: Four strategically positioned high-resolution cameras offer comprehensive inspection from every angle.

·      Efficient Dispensing Mechanism: A precision-engineered dispensing system smoothly feeds springs one by one into a v-track for inspection.

·      Intelligent Sorting System: Post-inspection, a sophisticated sorting mechanism directs conforming parts to packaging and diverts non-conforming ones to a scrap bin, optimizing your manufacturing process.

C-300
C-300
C-300
C-300
C-300

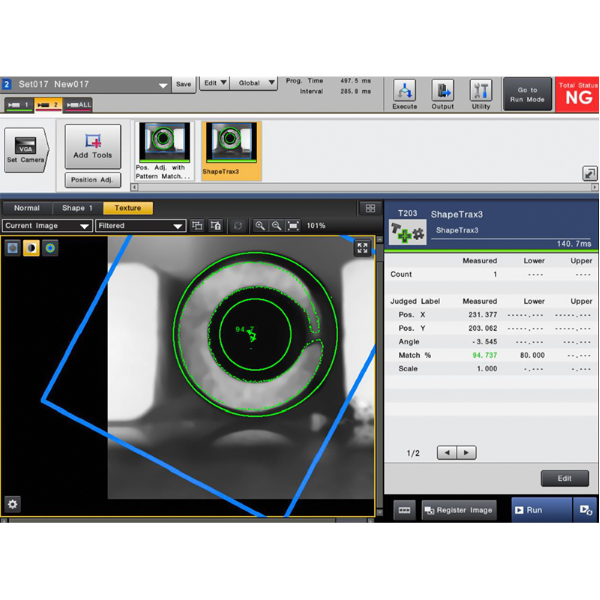

The C-300's sleek design is not just about looks — it's about performance. Close-up imagery of its main components alongside visual evidence of good vs. bad parts illustrates the machine's meticulous attention to detail. This inspection solution is the guardian of quality in your production line, ensuring that only the best springs make it to your customers.

Request Quote

C-400

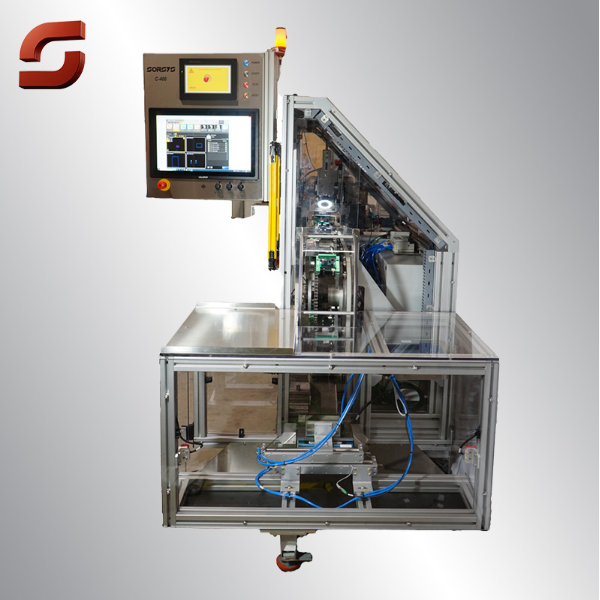

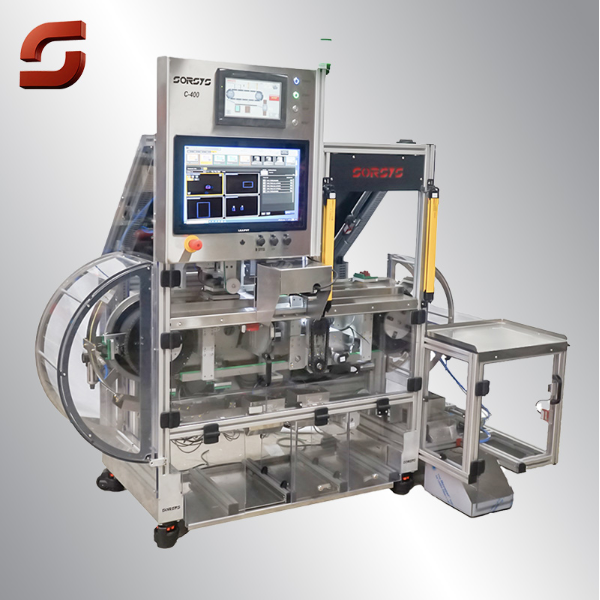

Introducing C-400: Diecast Inspection & Finishing System – Precision Refined



Key Features:



·      Poor Fill Detection: Ensures complete and proper casting, eliminating weak points due to underfilled parts.

·      Burr Identification: Identifies unwanted material remnants that can affect assembly and part function.

·      Damaged Features Analysis: Detects any compromised structural integrity or surface damage to maintain part reliability.

·      Blisters and Bent Brackets: Assesses surface and structural deformities that can lead to part failure.

·      Chip and Burr Removal: Precision re-drilling cleans out chips and burrs, ensuring smooth, clean holes for assembly.

·      Final Weighing Precision: An accurate scale confirms part weight to within +/- 0.1 grams to detect voids, ensuring density and integrity.

·      Operator-Assisted Feeding: Combines the skill of your workforce with the precision of machine automation.

·      Oval Guiding System: Utilizes a servo motor-driven system for smooth, accurate indexing and handling of parts.

·      High-Resolution Vision Inspection: Employs four cameras to perform a comprehensive inspection from all angles.

·      Rework Station: Parts requiring additional work are automatically sent to a dedicated station for reworking, without interrupting the inspection flow.

C-400
C-400

The C-400’s inspection process culminates with each part being weighed to assess for internal voids — a final, critical check for ensuring the highest quality in diecast components.

Request Quote
