Cold Heading Defects in Fasteners

WHAT IS COLD HEADING?

Cold heading, also known as cold forming, is a high-speed, chipless manufacturing process that uses compressive die force to shape metal wire or rod into fasteners at room temperature.

. No material is cut or removed — metal is displaced into the die cavity
. Improves tensile and fatigue strength vs. machined equivalents
. High strains create conditions where defects can nucleate


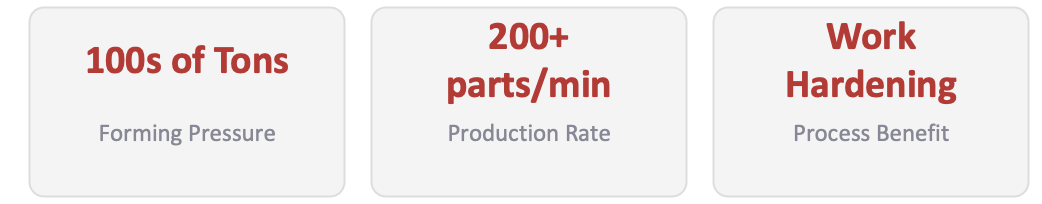

COMMON COLD HEADING DEFECTS

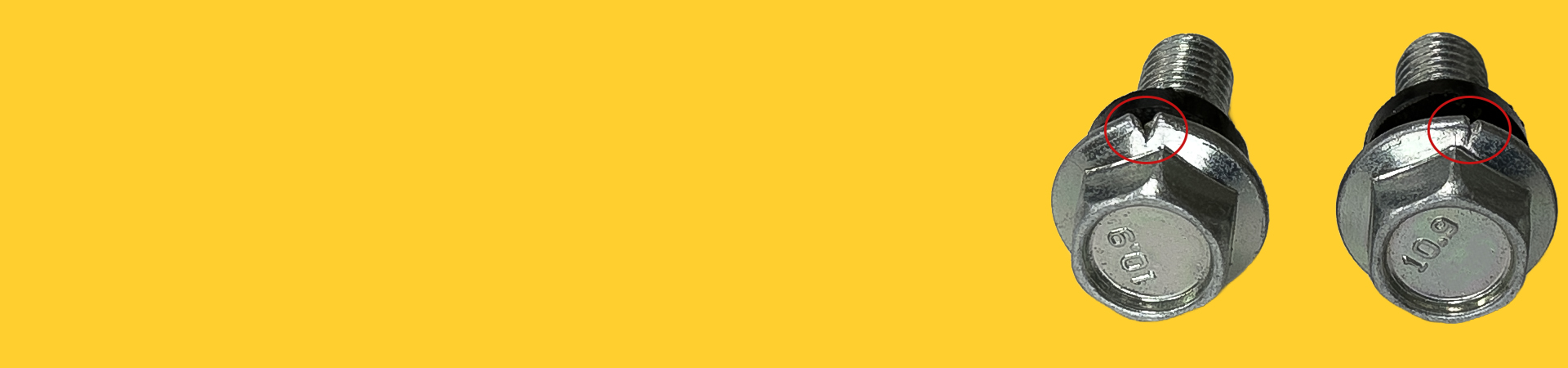

Head Cracks

Radial or circumferential cracks at the fastener head from tensile stress during upsetting. Common in high-strength steels.

Chevron / Shear Cracks

Internal axial cracking from central shear bands — invisible externally, requires ultrasonic or cross-section inspection.

Laps & Folds

Metal folds back when material flow is disrupted, creating notch-like discontinuities that drastically reduce fatigue life.

Seams

Longitudinal defects from wire rod inclusions, elongated during drawing and exposed at the heading stage.

Void & Piping

Porosity or central voids from the wire rod, revealed during extrusion. More frequent with improperly conditioned stock.

Die Marks & Scratches

Tool-induced surface marks from worn punches. Act as stress concentrators and fatigue crack initiation sites in service.


ROOT CAUSES OF COLD HEADING DEFECTS


Wire Rod Quality
Seams, inclusions, carbon banding, and decarburization in raw stock are inherited by finished parts.

Insufficient Ductility
High-strength grades (10.9, 12.9) have limited cold formability exceeding limits triggers cracking.

Poor Lubrication
Inadequate lubricant film raises die-wall friction and surface stress a primary cause of head cracks.

Tool Wear & Misalignment
Worn or off-center tooling creates non-uniform metal flow, resulting in laps, folds, and asymmetric cracks.

Excessive Reduction Ratio
Multiple blows without annealing leave residual stresses that propagate into visible cracks.

DETECTION METHODS


 Method Detects Limitations
 Visual / Optical Surface cracks, laps, die marks Cannot detect subsurface defects
 Magnetic Particle (MPT) Surface & near-surface cracks Ferromagnetic parts only
 Eddy Current Surface seams, cracks, conductivity shift Calibration-sensitive; geometry issues
 Ultrasonic (UT) Internal voids, chevron cracks Complex geometry limits coverage
 Metallographic Section Internal laps, folds, seams Destructive - sample basic only
 Automated Vision Dimensional, head cracks, surface defects High cost; lighting-dependent


PREVENTION STRATEGIES

1- Material Control

Certify wire rod chemistry (S, P, inclusions). Require MTRs and third-party supplier audits. Specify grain size and decarburization limits.

2-Process Optimization


Keep single-pass reduction ratios under 70% for medium-carbon steel. Add intermediate annealing between blows to restore ductility.

3-Lubrication Management

Maintain lubricant concentration, temperature, and application consistency. Use phosphate-and-soap or reactive polymer systems.

4-Tooling Maintenance


Set preventive maintenance schedules by part count. Track wear with dimensional gauging. Use laser alignment for die setup.

5- In-Process Monitoring

Install press force monitoring to catch load spikes. Integrate 100% eddy current or automated vision sorting downstream.


Defects Are Manageable With the Right Controls

For manufacturers in automotive, aerospace, and heavy equipment markets, the cost of a defect reaching the field vastly outweighs upstream prevention investment. Process FMEA and SPC monitoring across heading parameters are the foundation of consistent, defect-free fastener production.
